Für die Entwicklung von materialgerechten, wirtschaftlichen und energieeffizienten Produktionsprozessen werden am Kompetenzzentrum Handhabungstechnologie ganzheitliche automatisierte Prozesse von der Materialbereitstellung der technischen Textilien bis zum fertig aufgebauten Rotorblatt entwickelt und getestet.
Im Zentrum stehen dabei insbesondere die technologisch komplexen Fragestellungen der Handhabungsaufgaben (biege)weicher Materialien zur Faserkunststoffverbund-Herstellung.
Ermöglicht wird dies durch die Kombination von intelligenter und flexibler Automatisierungstechniken, adaptiven Materialumgang sowie mit innovativer Sensor- und Informationstechnologie.

TECHNICAL DATA

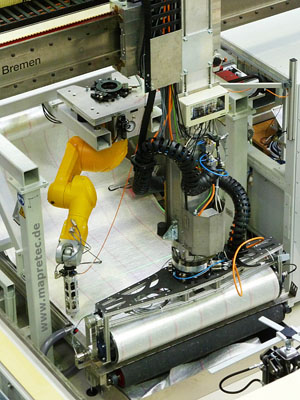

Handling technology for flexible materials

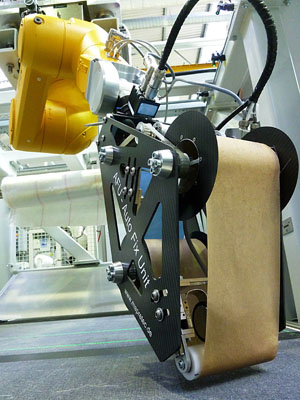

  • Effectors for textile gripping
  • Effectors for binder application
  • Effectors for 2D and 3D quality measurement
  • Ultrasonic cutting system
  • Material supply unit for textile rolls up to: 80 kg and 50” in width
  • Flexible preforming unit for large parts
  • Blade mold: root/transition section 6 x 3 m, M5000
Universal measurement and control system energy measuring technology
Industrial robot
  • Stäubli TX90
  • Velocity up to 1m/s
  • Acceleration up to 2 m/s
Gantry robot system
  • 8000 x 6000 x 1200 mm
  • Velocity up to 2 m/s
  • Acceleration up to 2 m/s
Gantry robot system
  • 5000 x 4000 x 1200 mm
  • Velocity up to 1 m/s
  • Acceleration up to 4 m/s
Universal tension testing machine
  • Max. test load 100 kN

CONTACT

Dr.-Ing. Jan-Hendrik Ohlendorf
Institute for Integrated Product Development, ForWind – University of Bremen
